ZSCL-1000 1000w Stainless Steel Pulse Fiber Laser Cleaning Machine

1.0 Sets
MOQ
ZSCL-1000 1000w Stainless Steel Pulse Fiber Laser Cleaning Machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Power: 1000W
Applicable Material: Stainless Steel, Carbon steel, Aluminum, Wood, Glass, Stone, Metal, Acrylic, Leather, Rubber, SS
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 3 years
Core Components: Engine, Motor
Laser Type: Fiber Laser
Dimension(L*W*H): L1140*W890*H1280
Year: 2021
Laser Source Brand: IPG
Laser Head Brand: ZEISSLASER
Control System Brand: Cypcut
Weight (KG): 300 KG
Key Selling Points: Low Maintenance Cost
Warranty: 3 years
Applicable Industries: Printing Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Garment Shops, Food & Beverage Shops, Construction works , Machinery Repair Shops, Advertising Company, Energy & Mining, Retail, Building Material Shops, Other
Local Service Location: Canada, France, Germany, Pakistan, India, Mexico, Russia, Thailand
Showroom Location: Egypt, Canada, United Kingdom, United States, France, Germany, Indonesia, Russia, South Africa, Australia
After-sales Service Provided: Online support,spare parts,Video technical support
Сертификация: CE, BV, GS, ISO 9001:2000
Pulse power: 30mJ
Cooling method: Water Cooling
MAX power: 6500W
Fiber Length: 7m
Power regulation range: 1-100%
Supply Voltage: AC 110/220V
Laser wavelength: 1064nm
Scan width: 1-160mm
Working temperature: 0-60℃
Основная информация
Сертификация: CE, BV, GS, ISO 9001:2000
Оплата и доставка Условия
Packaging Details: 1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt.
Supply Ability: 20 Set/Sets per Month
Характер продукции
Product Overview

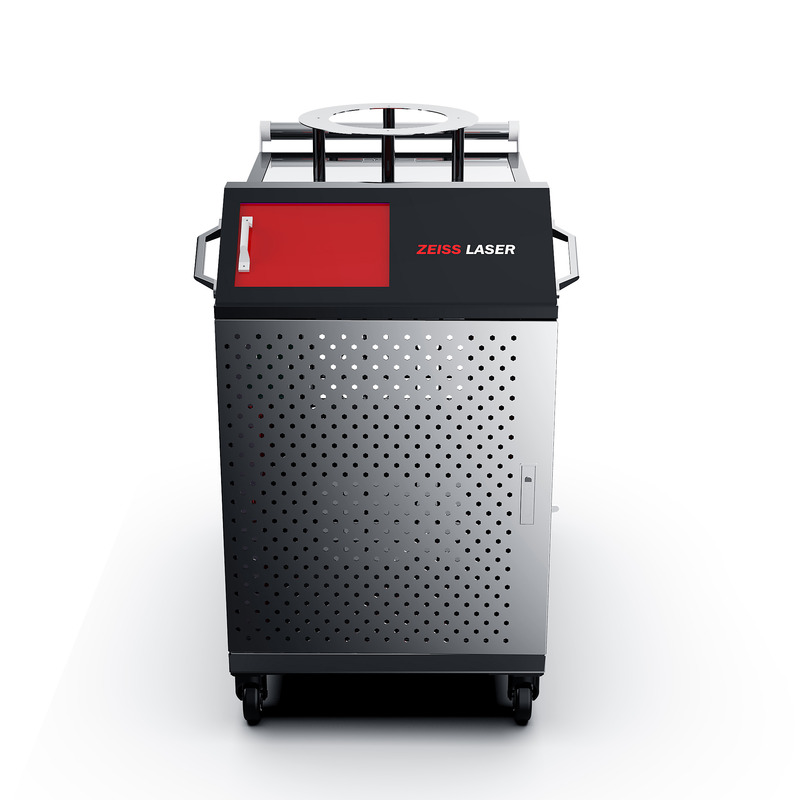

ZSCL-1000 1000w Fiber Laser Cleaning Machine

Products Description
ZSCL-1000 1000w Pulse Fiber Laser Cleaning Machine is a new high-tech machine for surface cleaning. It is easy to install and operate. It can work without chemical reagent or water.
Industrial handheld fiber laser cleaner for cleaning rust paint oil Laser cleaning technology refers to the use of high-power
density laser beams to irradiate the surface of the workpiece, so that the dirt, rust or coating on the surface can be evaporated or peeled off instantly, so as to achieve the cleaning process. The laser rust remover is a new representative surface treatment of high-tech products, which is easy to install, operate and realize automation. This is easy to operate, and no chemical reagents, media, dust, or water is needed to connected to the power source cleaning. It can remove resin, paint, oil, stains,dirt, rust, coating, plating and oxidation on the surface of the object.
1.Substrate non-contact cleaning, without damage. 2.High precision cleaning, good precision of position cleaning, selective washing. 3.Without any chemical cleaning fluid and no consume materials,safe and environment protecting. 4.Simple operation,hand-hold clean or with a mechanical hand to clean. 5.Good cleaning effect and save time. 6.Laser cleaning system is stability, almost no maintenance.

PRODUCT SPECIFICATIONS
No
Item
Data
1
Cleaning width(mm)
1-160mm
2
Preheat time
10—30s
3
Supply Voltage
AC 110/220V
4
Cooling method
Water Cooling
5
Working temperature
0-60°C
6
Working environment
Flat without vibration and shock
7
Weight
300KG
8
Size
L1140*W896*H1280mm
Exhibition
WHAT CAN A FIBER LASER RUST REMOVER DO?
Fiber laser rust remover is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning.
Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.


FAQ
1. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed,relative damage of material, pulse type is less than continuous type.

2.Can I modify the pattern of optical fiber?
Yes, the laser beam supports a variety of settings, including circle, triangle and
other patterns. You can contact us to get the cleaning video.

3.Language interface
Most of our customers use English and language settings can also be set according to customer needs.

4.I'm not sure what power to choose,what should I do?
Please take photos of the materials you need to clean and contact us,Our engineers will give you suggestions. You can choose the brand according to your needs.
Company Profile
Shandong ZeissLaser Technology Co., Ltd.
Shandong ZeissLaser Technology Co., Ltd. is a comprehensive company dedicated to laser intelligent equipment , laser application , automation technology, production and sales . It is also the first batch of manufacturers in China to focus on laser cleaning machines. ZeissLaser has carefully developed and produced a series of laser products through various technical cooperation with the semiconductor Research Institute of Chinese Academy of Sciences and Shenyang Institute of automation. At the same time, the company also establishes strategic cooperation alliances with world-class laser suppliers such as TRUMPF and IPG, and provides all-round laser application solutions for customers! ZeissLaser's products include laser cutting machines, laser welding machines, laser cleaning machines, laser marking machines and various automatic laser application equipment, which can provide customized production services according to user needs. The company carries out school enterprise cooperation with colleges and universities , such as Shandong University and Qilu University of Technology. The team of experts and professors acts as the expert consultant of the company to continuously develop and improve the scientific and technological level of the company in the laser field. Based on technology, brand, quality and service, ZeissLaser will take root in the Chinese market and provide customers with laser intelligent equipment with high quality, high experience and high cost performance.
