Характеристики

Condition: New

Max. Output Power: 1500w

Usage: laser welding

Warranty: 1 Year

Laser Source Brand: RAYCUS

Weight (KG): 150 KG

Key Selling Points: Easy to Operate

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction worksÂ , Energy & Mining, Advertising Company

Сертификация: ce

After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: United States, Germany, India

Showroom Location: United States, Germany, India

Product name: Fiber Laser Welding Machine

Processing material: metal

Fiber cable length: 10m

Welding speed range: 0-120mm/s

Voltage: 380V/50Hz

Dimensions: 1300X650X1100mm

Total weight: 150KG

Laser Power: 1000w-1500w

Laser wavelength: 1080nm

Cooling method: Water cooling

Основная информация

Сертификация: ce

Оплата и доставка Условия

Packaging Details: Suitable for sea transportation

Характер продукции

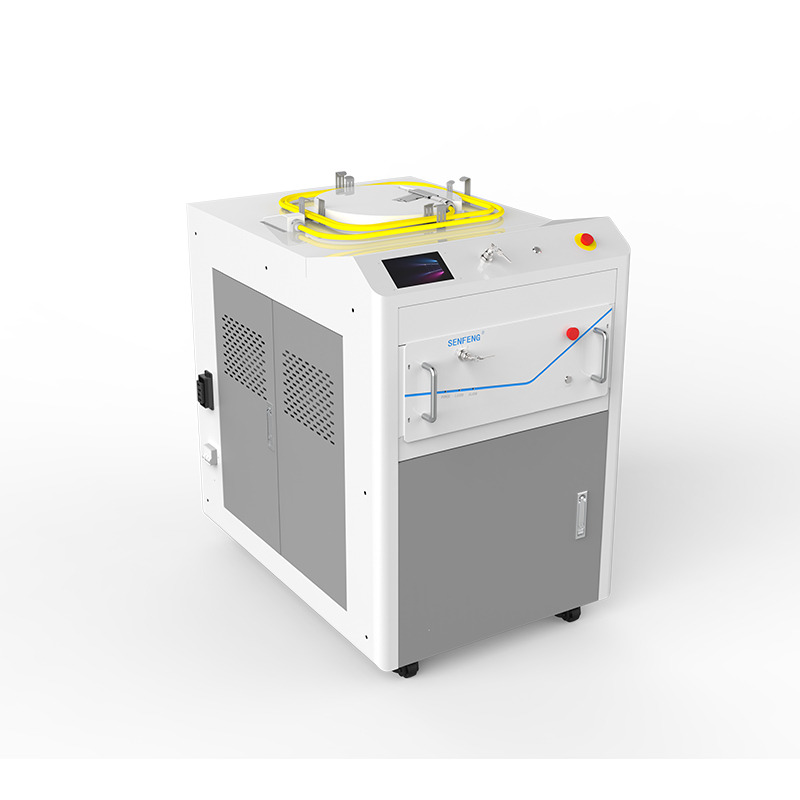

Fiber Laser Welding Machine 1000W and 1500W SF1000WHWM-A

1. Technical Parameters

Model	SF1000HWM-A handheld laser welding machine
Laser device	1000W
Laser wave length	1080nm
Welding speed range	0-120mm/s
Welding gap	≤1/5 of the thickness of sheet metal
Fiber cable length	10m
Cooling mode	Water cooling
Voltage	380V/50HZ
Consumable	Nitrogen welding, output pressure 0.2Mpa
Total power	6KW
Dimensions	1300X650X1100mm
Total weight	150KG

2. Application

Laser welding machine is not only used for welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, but also for welding various materials, such as copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on.

1. Welding material

2. Welding range:0.5~4mm carbon steel,0.5~4mm stainless steel,aluminium alloy 0.5~2mm,brass 0.5~2mm(1000w);

Welding range:0.5~5mm carbon steel,0.5~5mm stainless steel,aluminium alloy 0.5~4mm,brass 0.5~2mm(1500w)

3. Unique welding function:Hand-held welding can meet the requirements of square tube welding, round tube butt welding, plate tube welding,etc. The machine can be customized for all types of tooling.

3. Sample Pictures

4. Factory Pictures
